Mini-CAD: Diagrams

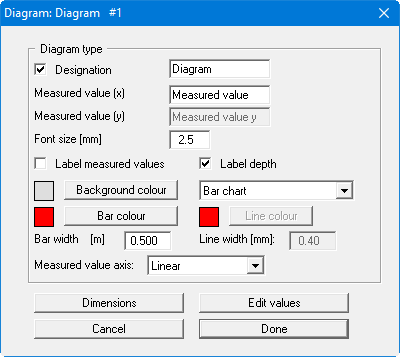

Activate the "Diagram" icon and define the position of the diagram by pressing the left mouse button. The following window opens to enable input of the diagram name, value designations, font sizes, annotation, etc.

Depending on the visualisation selected in the menu (bar, line, x/y graph), the corresponding input boxes and buttons required are current. When the lower buttons are clicked further dialog boxes open to allow input of graph colours, dimensions and measured data.

Tip: To delete a value once it has been entered allocate it a fictitious depth larger than that of any other value (or the highest y value for x-y diagrams). Then sort the values by depth (or by the y values for an x-y diagram) and reduce the number of values by one. The value with the maximum depth (or the maximum y value) has now been deleted.
