GGU-UPLIFT: Systembeschreibung (Bsp. 1)

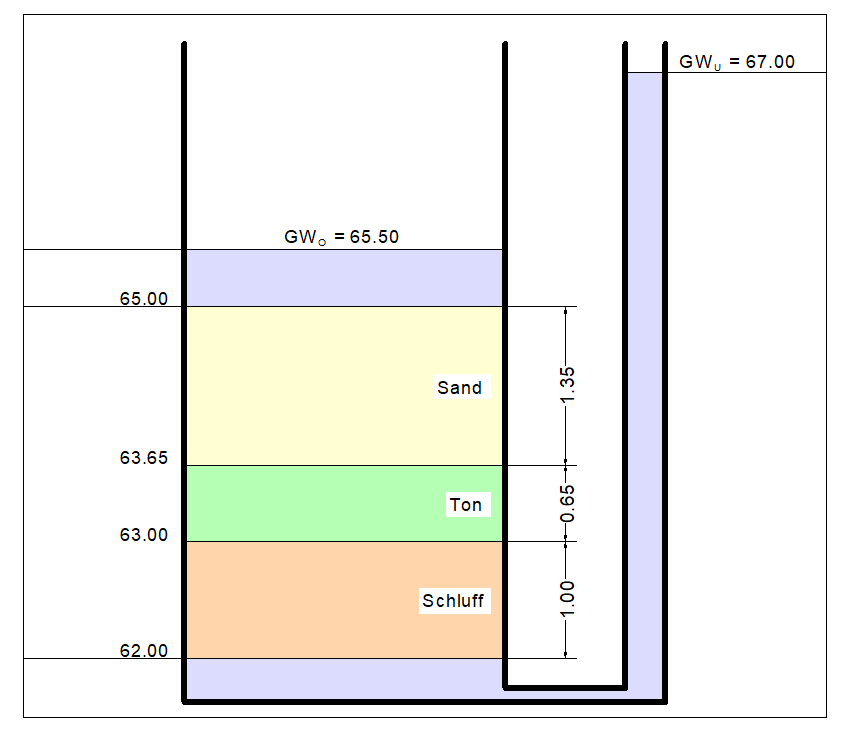

Berechnet werden soll folgendes System:

Folgende Daten liegen vor:

Baugrubensohle = 65,00 mNHN
Wasserstand an OK System = GW_O = 65,50 mNHN
Wasserstand an UK System = GW_U = 67,00 mNHN

Boden	UK [mNHN ]	k [m/s]	[kN/m³]
Sand	63,65	10^-4	19/10
Ton	63,00	10^-8	20/11
Schluff	62,00	10^-7	19/10
