GGU-2D-SSFLOW: "Common systems" menu item

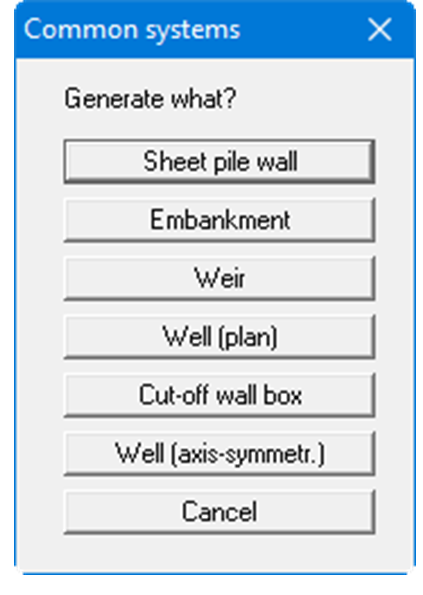

You can generate a mesh for a variety of common systems using this menu item. The following systems are available:


A dialog box opens when you press the required button. Enter the dimensions and the necessary boundary conditions data for the selected system. Once the data is entered the system is displayed on the screen. Of course, you may also use these generated systems as the basis for further refinements.
