GGU-DRAWDOWN: "Section course legend" menu item

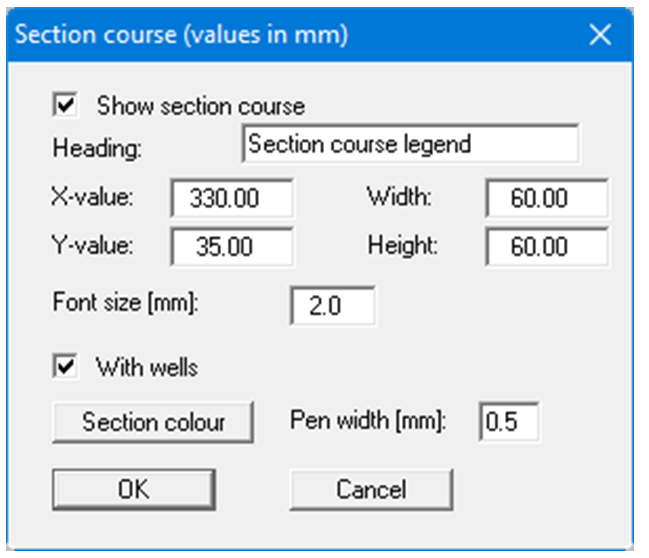

If a section is visualised a legend is shown which includes a section location sketch. If the "Show section course" check box is activated the presentation format can be edited in the dialog box for this menu item. The dialog box can also be accessed by double-clicking in the legend box.

The position of the legend can be defined and edited using the values "x" and "y", "Width" and "Height". You can edit the font size of the entered heading. The fastest way to modify the position or size of the legend is to press the [F11] function key and then to pull the legend to the new position or alter size with the left mouse button pressed.

Activate the appropriate check box if the wells are to be displayed in the legend. The line describing the section course can be edited by pressing the "Section colour" button and changing the value in the "Pen width" input box.
