GGU-LATPILE: "Design defaults" menu item

Once the current system has been analysed you can progress directly to the pile design (see menu item "System/Analyse"). In addition, using this menu item, you can also carry out subsequent design for a different section to that used for the analysis.

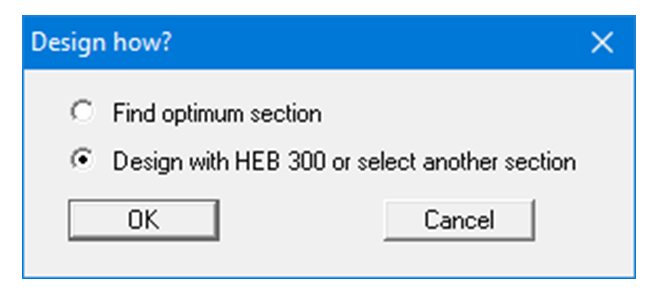

When designing a steel pile, the following dialog box opens containing two options for selecting the section:

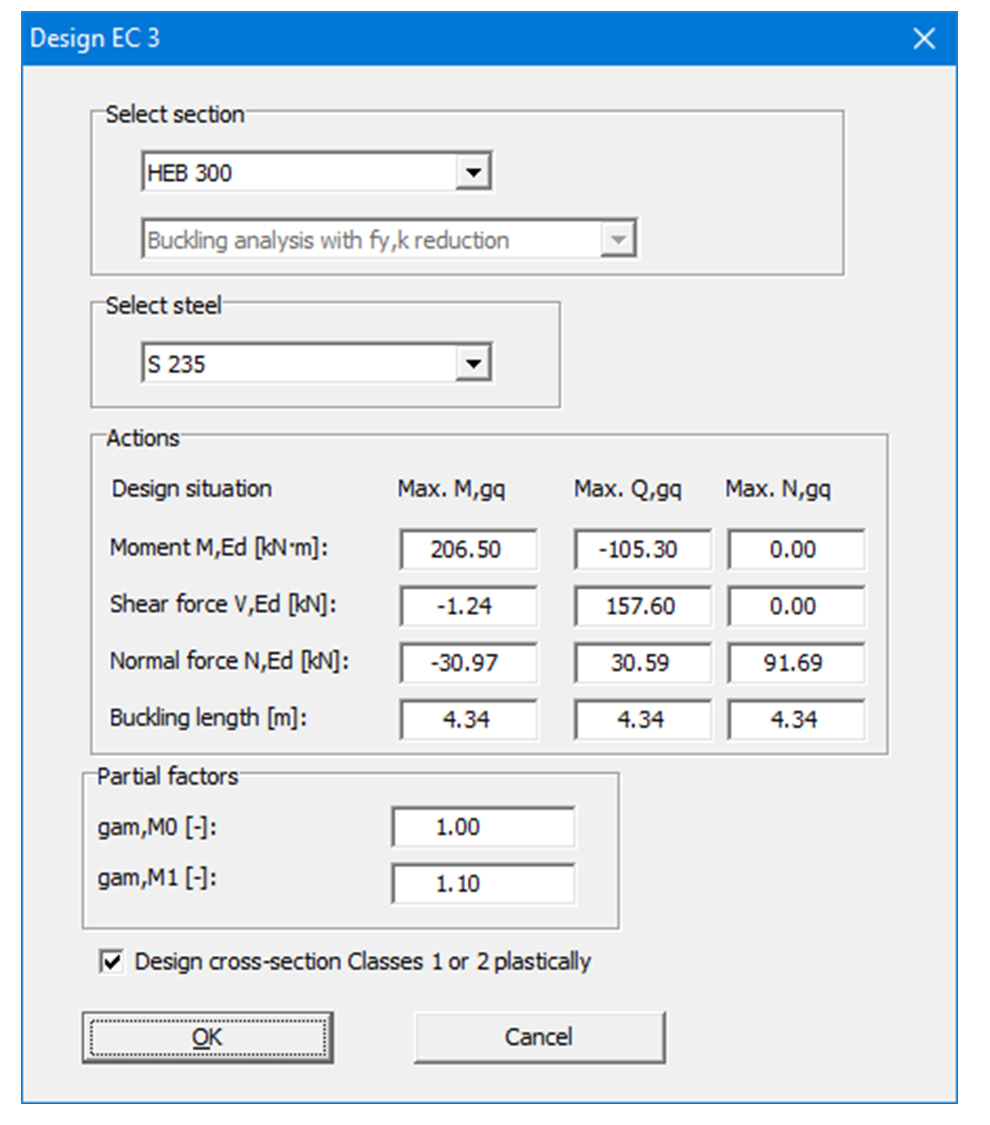

You can search for the optimum section in the section list (see the example in Section “Step 10: Analyse system”). By activating the bottom option, the analysis is performed using the previously selected design section. However, in the subsequent dialog box you can also select a different design section.

When design is complete you are informed of the verification results in an information box and are presented with the principal data on which the design was based. After confirming with "OK", the state variables and the system are presented on the screen.
