GGU-SETTLE: "Default layer depths" menu item

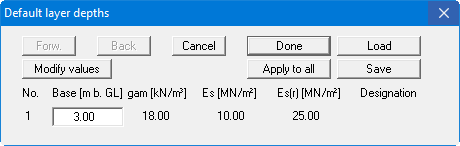

After clicking on this menu item the following dialog box appears:

If you have defined three layers using the "Soils/Layers" menu item, three layers will also be shown in this dialog box. The corresponding constrained moduli are also shown for information purposes. The given depths can be edited to suit your wishes. Depths are entered positive downwards as m below ground level (= 0.0 m). If you have activated the use of absolute heights in the "System/Ground level" menu item , enter the depths as absolute elevations here, for example in m AD.

During the following definition of triangular nodes, these layer depths are assigned to the appropriate nodes. The layer depths for each node can be edited as wished. If the constrained modulus profile is equal for almost all nodes, you can save input work during the initial definition of default depths.

Using the "Load" button you can load a previously saved depth distribution. Using "Save" you can save the current depth distribution to a file, in order to have them available later, without renewed input. Using the "Modify" button, all existing depths can be increased or reduced by applying a constant. If you select the "Apply to all" button, all current triangle nodes will be assigned these depths. Using the "Cancel" button, you may leave the dialog box without accepting the alterations. You can also leave the dialog box with "Done". Any changes will be accepted.
