GGU-STRATIG: "Hatching" menu item

For filling of regions with hatching the code numbers 801 to 850 are available.

Using the "Forw."/"Back"/"Go to no." buttons you can move through the dialog box.

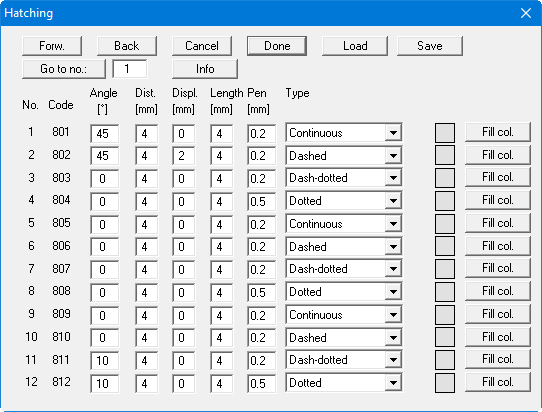

The "Info" button provides information on the available input options. For example, to generate hatching for concrete define codes 801 and 802, as shown in the dialog box above, and then use the codes in your soil profile.

User-defined hatching will only be displayed on the screen, if the "Screen display with soil signatures" check box is activated in the "Graphics preferences/Preferences" menu item.

You can save the hatching in a file with suffix ".srf" or load a ".srf" file. If you select
"GGU-STRATIG.srf" as file name and save the file on the same level as the GGU-STRATIG program, the saved hatching and colours will be automatically loaded at the next program start.
