GGU-TIMESET: "Annex numbers" menu item

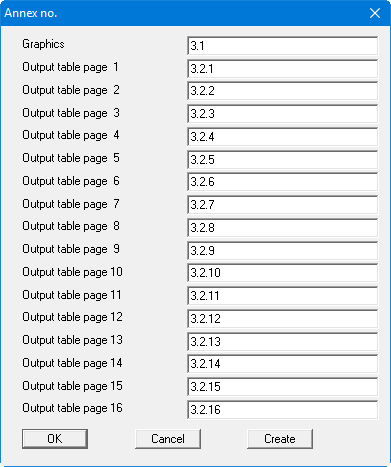

Here it is possible to define the numbering of the time-settlement graph annexes and output table sheets The numbers can be either user-defined or determined automatically by the program. The following dialog box, with 16 input rows for output sheets, opens regardless of the actual number of tests entered. This is the maximum possible number of single tests.

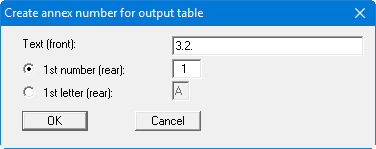

The numbers for the output sheets can be easily generated by the program using the "Generate" button. Make the following entries to get the numbering shown above:

Enter the text to appear in front of the automatic numbering in the first input box; this can be a different number to the annex number for the graphics. It is then possible to select between numbering with numerals or a letter sequence. Activate the required command button and enter the first number or letter (in lower or upper case).
