GGU-TRENCH: "General legend" menu item

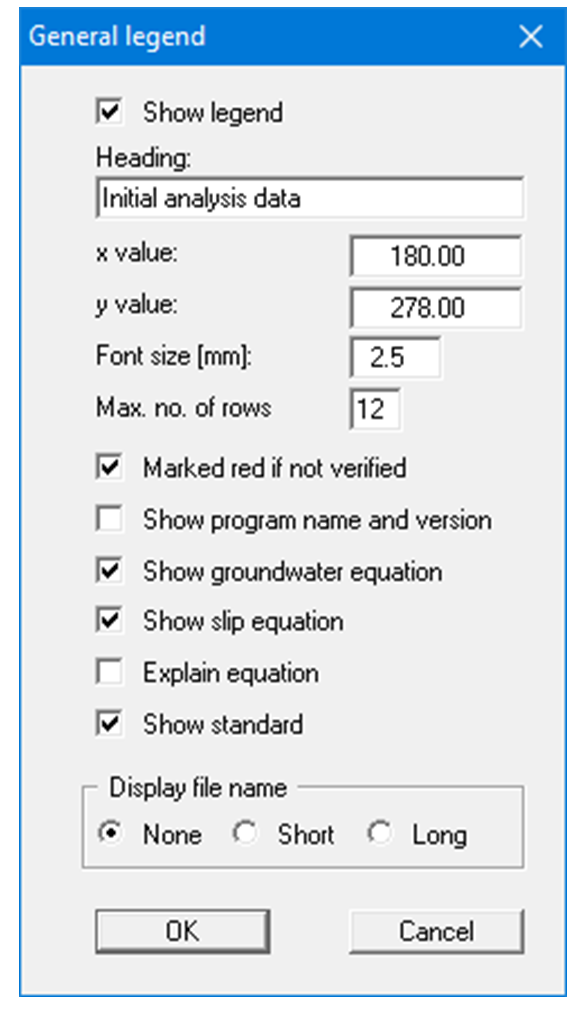

A legend with general properties will be displayed on your output sheet if you have activated the "Show legend" check box. Using this menu item you can alter the type of presentation.

If wanted a given heading can be used. You can define and edit the position of the legend using the values "x" and "y". You control the size of the legend using "Font size" and "Max. no. of lines"; where necessary, several columns are used.

The fastest way to modify the position of the legend is to press the [F11] function key and then to pull the legend to the new position with the left mouse button pressed.

In the General legend you can, if wished, display further information on different equations and the adopted standard or on the program (name and version). Any project identification entered using the menu items "File/New" or "Edit/Project identification" will be shown in the general legend. The file name can be switched off ("None" option button) or be displayed automatically with or without the path by selecting the appropriate "Short" or "Long" option button.
