GGU-2D-SSFLOW: "Values in node section" menu item

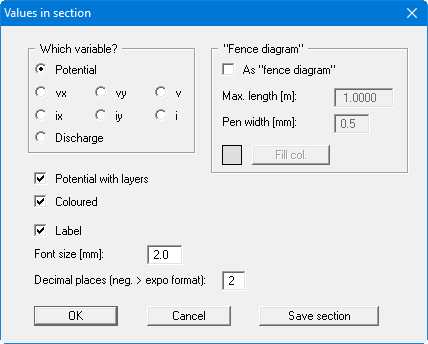

You can display calculated values, for example for potentials, in a section. Defining the section is done almost in complete analogy to the previous menu item. After pressing the [Return] key a dialog box opens allowing you to select the variable for display.

You can define preferences for the section as a function of the selected variable, for example labelling or a display of a fence diagram. If you have selected "Potential", you can also choose to have the layers displayed, as well as the potentials.

Here you are given the opportunity to save your section to a file using the "Save section" button. This file can later be opened, for example using the menu item "Evaluation/Calculate (discharge) in section".

If you have activated "Show section course" using the menu item "Graphics preferences/Section legend", a location sketch is automatically displayed on the screen showing the system outline and the defined section.
