GGU-LATPILE: "Action boundary conditions" menu item

You can introduce additional action boundary conditions anywhere along the pile.

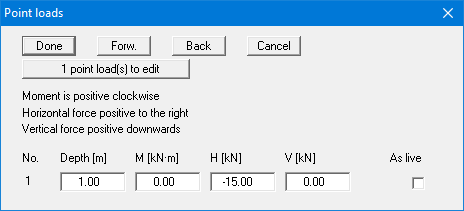

The direction of the forces is defined by means of the sign. In the example above a horizontal force of 15 kN/m has been entered at the top of the pile, acting towards the left.
