GGU-OEDOM: "Base data" menu item

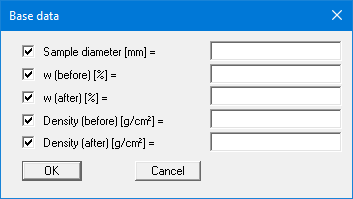

This menu item can only be selected when using constrained moduli. The following dialog box opens:

The sample diameter and the water content before and after the test can be entered in the input boxes. These values are displayed on the output sheet. They serve no purpose in the evaluation. Texts can be altered, or input boxes can be switched off such as " Sample diameter [mm] =" as shown in the above dialog box by going to the menu item "Output preferences/Texts" button "Base data table".
