GGU-RETAIN: "Section data" menu item

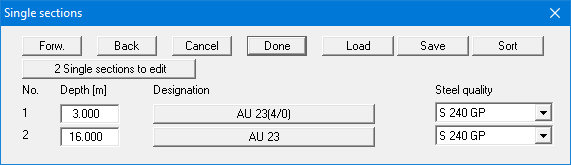

For sheet pile walls, soldier pile walls and combined sheet pile walls, you can define several different sections or soldier piles for the wall. This allows partial corrosion of a sheet pile wall to be modelled, for example (see “Worked example 2: Sheet pile wall with corrosion”). In the "File/New" or "Editor 1/Analysis options" menu items, activate the "Using several steel sections or inserted beams" check box. In the subsequent dialog box, you can select different individual sections for the various depths.
