GGU-SETTLE: "Generate foundations in a row" menu item

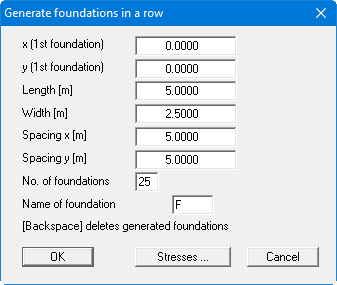

You can generate several foundations of equal dimensions in a row. The following dialog box opens:

First, enter the x and y ordinates of the first foundation. Define the length and width of all foundations. With "Spacing x" and "Spacing y" the displacement of the generated foundations to each other is given. The name of the foundation is supplemented with the current number (start number = 1).

The foundation base, the excavation unloading and the foundation stresses will be entered in accordance with the default values in the "Foundation/Values for all foundations" menu item. The default values can be adapted via the "Stresses …" button.

Immediately after generation, the created foundations can be deleted by pressing the [Backspace] key, if the foundation generation is not according to your wishes.
