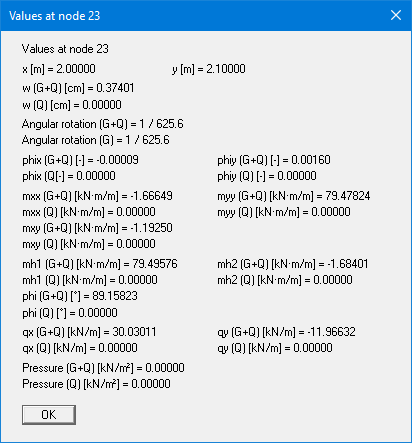

To compare the results to those of Schwarz go to the menu item "Evaluation/Individual values". If you click the required node using the left mouse button you will see a result box for this node, e.g. for the node in the slab centre at x = 2.0 m:
For the slab centre and the lower slab face for the values of x = 2, 4, 6 and 8 m Schwarz gives the displacements listed in the following tables. The results ascertained using GGU-SLAB (converted to [m]) are listed beside them.
|
x [m] |
y [m] |
Schwarz's
|
GGU-SLAB
|
|
2,0 |
2,1 |
0,00373 |
0,00374 |
|
4,0 |
2,7 |
0,00604 |
0,00606 |
|
6,0 |
3,3 |
0,00604 |
0,00606 |
|
8,0 |
3,9 |
0,00373 |
0,00374 |
Table 1 Displacements at the slab centre [m]
|
x [m] |
y [m] |
Schwarz's
|
GGU-SLAB
|
|
2,0 |
0,6 |
0,00367 |
0,00368 |
|
4,0 |
1,2 |
0,00608 |
0,00608 |
|
6,0 |
1,8 |
0,00623 |
0,00624 |
|
8,0 |
2,4 |
0,00396 |
0,00396 |
Table 2 Displacements at the lower slab face [m]
The results are practically identical.
