GGU-SLICE: "Input data legend" menu item

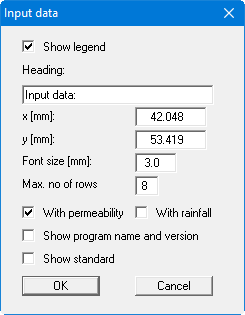

If you activate the "Show legend" check box in the dialog box for this menu item the analysis input data are displayed in a legend.

You can define and edit the position of the legend using the values "x value" and "y value". You control the size of the legend using "Font size" and "Max. no. of lines"; where necessary, several columns are used. The fastest way to modify the position of the legend is to press the [F11] function key and then to pull the legend to the new position with the left mouse button pressed.

Activating the two check boxes "With permeability" and "With rainfall" is only useful if you have determined the groundwater level as the storage depth after DRESCHER.

In a system using geogrids the geogrid analysis can also be shown by simply activating the displayed check box. Additional information on the program (name and version) and the adopted standard can also be activated in the legend.
