GGU-SLUGTEST: "Data range via editor" menu item

You can define ranges to be taken into consideration, or represented, for both the screen presentation and for your evaluation. If, for example, your dataset contains data from a slug and bail test, you can select either the slug or the bail test for evaluation using this menu item. This function can also be accessed using the [F7] key.

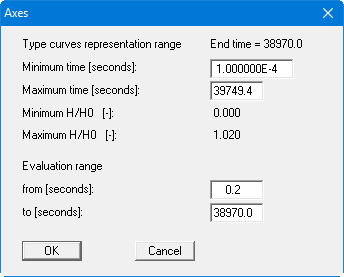

In the dialog box you will see the minimum and maximum values for times and values automatically determined by the program for the representation range. For the evaluation range you will see times only. You can enter your own values into the corresponding input boxes and thus redefine the representation and evaluation ranges.

The program compares your times for the evaluation range with those for the existing data points. For the "from" time, the value of the next lowest data point is used and for the "to" time that of the next highest data point.

The times for the evaluation range must always form a subset of the times for the representation range. You will otherwise see a warning message and the times for the evaluation range will be automatically adjusted by the program.

You can also redefine the evaluation range only to achieve the optimum screen display, using the "Edit/Fit in selected data" menu item.
