GGU-STABILITY: "Display results" menu item

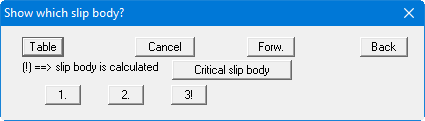

You will see a dialog box. By clicking on the button for the required slip body you open a further dialog box containing all the principal analysis results for the selected slip body. The designations correspond to those used in the equation in DIN 4084.



In this slip body result box you can view and print a table of individual slip body results using the "Table" button (see Section "File/Print output table" button "Output as ASCII").
