GGU-STRATIG: Create new table or edit an existing one
Using this menu item, you can display tables (e.g. with soil properties) depth orientated next to the stratigraphic log. In this menu item a dialog box opens allowing a new table to be entered, or an existing table to be edited by clicking the button with the name of the existing table. A table of soil properties is provided in the example file "Ex_Measured values + table.bop" provided with the program. After clicking the "Soil properties" button the following editor box for the selected table opens:
The following actions are possible clicking the buttons of the dialog box:
"Base data"
You can enter or edit the base data for the corresponding table."Column headings"

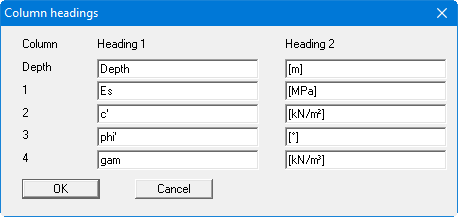

Four columns are defined in the example file. In addition, the "Show depth column" check box in the base data was activated. The dialog box shown below then opens:
The inputs below "Heading 1" will be shown in the 1st row of the table, the inputs below "Heading 2" in the 2nd row of the table.
"Edit values"

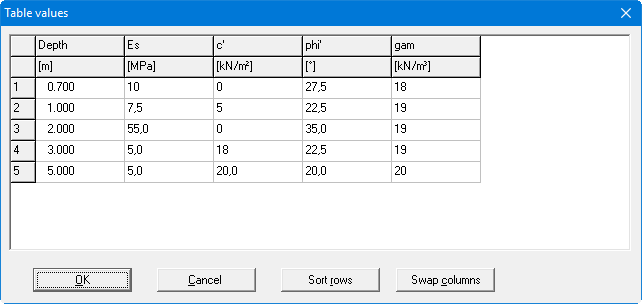

In the dialog box of this button input or editing of values to be shown in the table is carried out. For layer orientated table display, the layer depths of the corresponding stratigraphic log must be entered in the "Depth" column.
If new rows are entered, they can then be sorted by depth using the "Sort rows" button. By clicking on "Swap columns", you can change the column sequence. The dialog box is modified accordingly for editing tables for utilising ground source heat to VDI 4640.
"Delete"
The current table can be deleted after a security prompt."Duplicate"
The table will be duplicated. You will then find yourself in the "Base data" dialog box for the newly created table allowing you to change the name and other settings."Ground heat (VDI 4640)"
A ground source heat utilisation table including the specific heat extraction capacities for borehole heat exchanger to VDI 4640 can be created."Done"
You will arrive back at the previous dialog box. Alterations will be accepted.
