GGU-STRATIG: Enter base data of a table

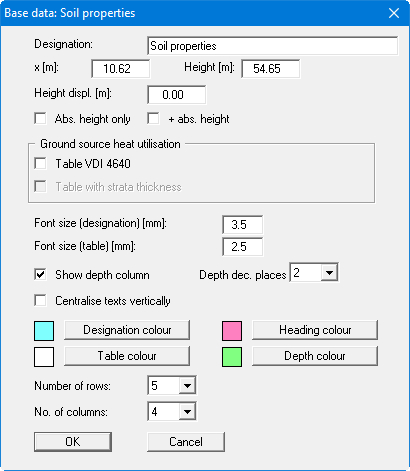

After clicking on the "Base data" button the following dialog box of the selected table opens:

You can give the table a "Designation". With "x", "Height" und "Height displaement" the table is positioned on the page. The height should correspond to that of the corresponding stratigraphic log. For depth presentation, you can choose between "Abs. height only" and "+ abs. height". You can determine whether or not the depth column is to be displayed and if so, with how many decimal places.

You can have the backgrounds coloured for various columns and heading rows. The number of rows and columns can be varied. For layer orientated displays, the number of rows must correspond to the number of layers in the corresponding stratigraphic log. The number of columns corresponds to the number of parameters you wish to show, not including the depth column.

Using the "Table VDI 4640" button you activate visualisation of a ground source heat utilisation table. This can also be achieved directly using the "Ground heat (VDI 4640)" button in the general tables editor box. If the ground source heat table is activated via the base data, you are asked whether the table headers should be created to VDI 4640 after exiting the dialog box. If you confirm this query the same dialog box opens as seen after pressing the "Ground heat (VDI 4640)" button.
