GGU-STRATIG: Defining backfill layers ("Backfill" button)

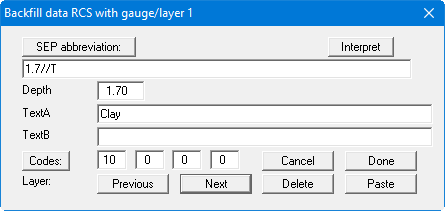

The starting height (ground level) is entered in the stratigraphic log's base data under "Designation and position". Ground level always corresponds to the top of the backfill. Gauge backfill layer input is entered analogous to the procedure for entering borehole layers. After clicking the "Backfill" button the following dialog box opens:

Using the "Interpret" button the SEP 2 abbreviations can be used in the same way to automatically enter the long texts allocated to the abbreviations. However, only codes from the "Petrography" abbreviations range may be used. Here, too, the texts can be allocated to text lines TextA and TextB by separating the petrographic abbreviations with a semicolon. Additional information on the SEP 2 abbreviations can be found in Section “Layer input using SEP 2 abbreviations (recommended)“.
