GGU-TRIAXIAL: "Shear parameters for failure criteria" menu item

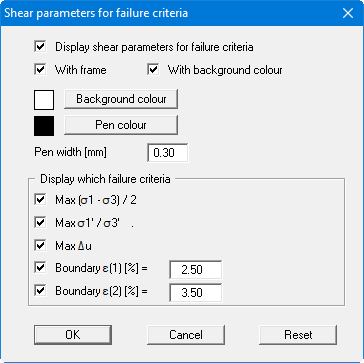

Use this menu item to open the following dialog box for visualisation of the shear parameters for the failure criteria in a legend on your output sheet:

In the lower area, you can choose to display all failure criteria or only specific ones. If you have activated legend visualisation, at least one failure criterion must always be selected, otherwise the program activates the first failure criterion.
