GGU-TRIAXIAL: "Texts" menu item

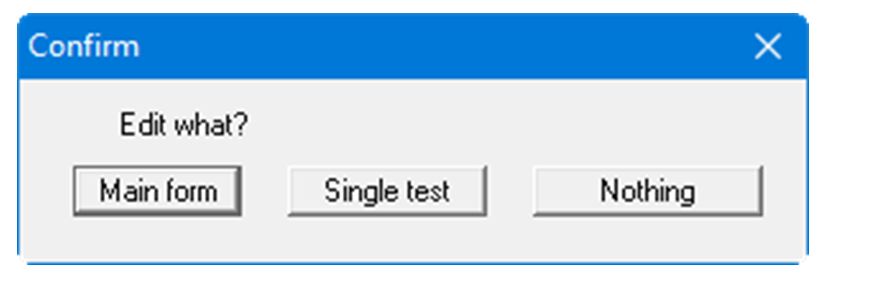

The default labelling of some output sheet elements can be edited in this menu item's dialog box. Among other things, the name of the output sheet can be specified here. An option box opens in which the various fields can be selected for editing using the correspondingly labelled buttons.

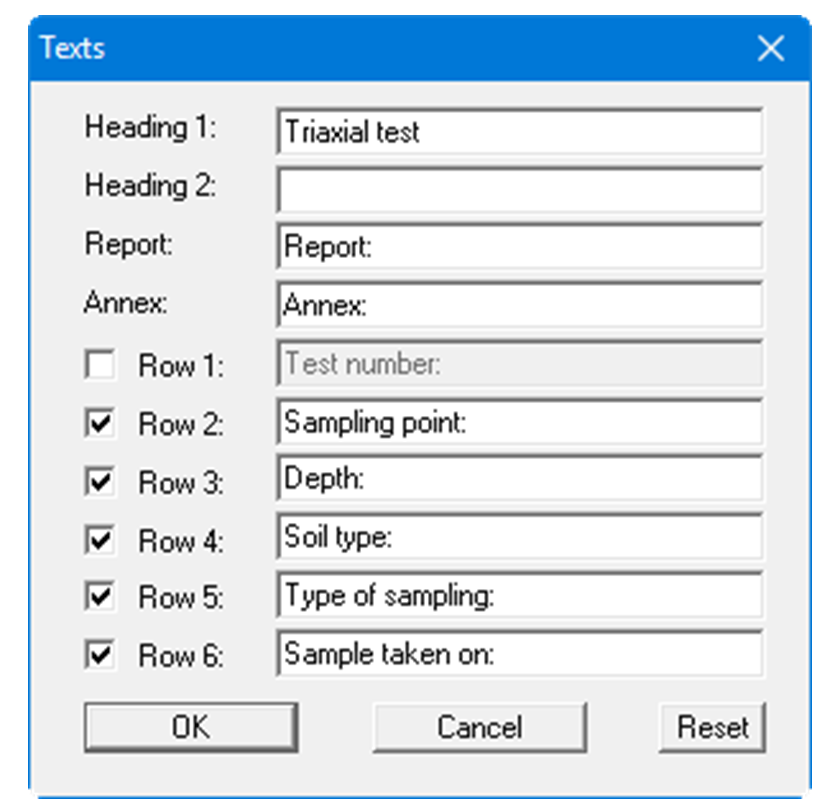

After clicking "Main form" the following dialog box opens:

Your input in rows 1 to 6 of the above dialog box, as well as the input for "Report:" and "Annex:" also represent the designations for the input boxes in the "Edit/General" menu item dialog box. If lines are deactivated in the above dialog box, the corresponding input boxes in the "Edit/General" menu item dialog box are also deactivated.

Use "Reset" to restore the default labelling settings. If you have retroactively changed the language, you will see the internal program translations in the input boxes.

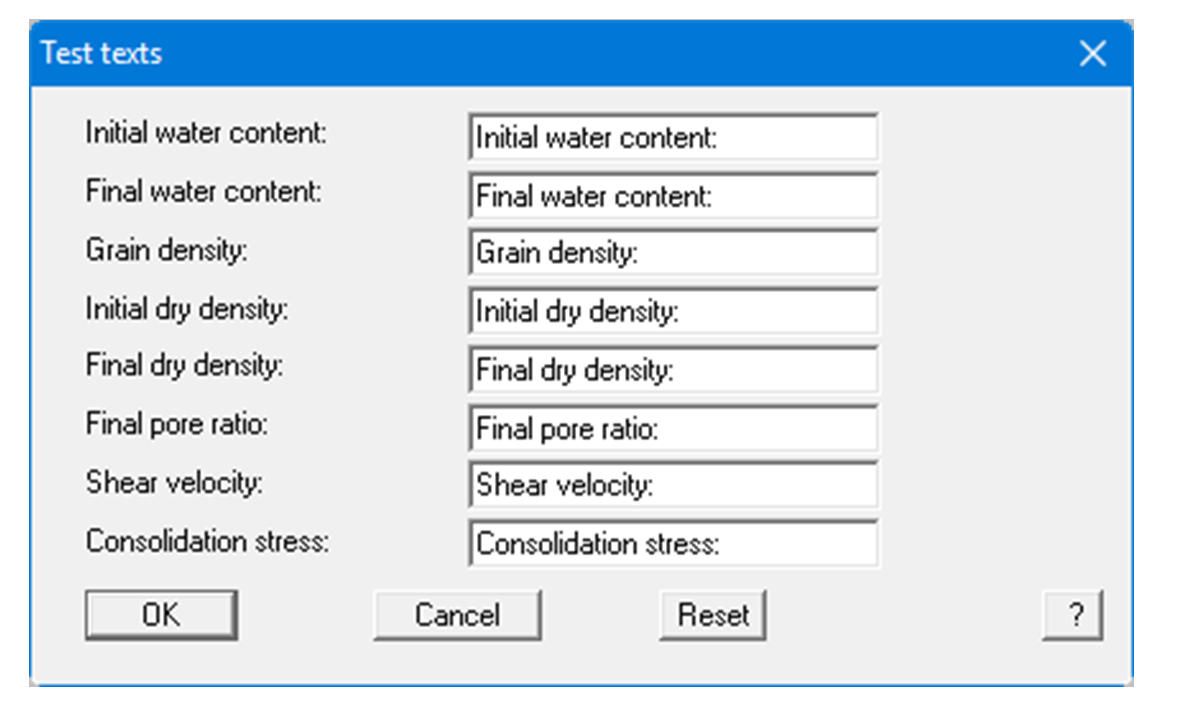

If the "Singe test" button is clicked in the above option box the following dialog box opens, allowing editing of the test data input box labelling and the display of the test data table on the output sheet:

Test values whose contents you delete in the fields above will not be displayed in the tests base data and in the table of test values on the output sheet.
