GGU-CANTILEVER: Determination of wall loads for reinforced concrete design

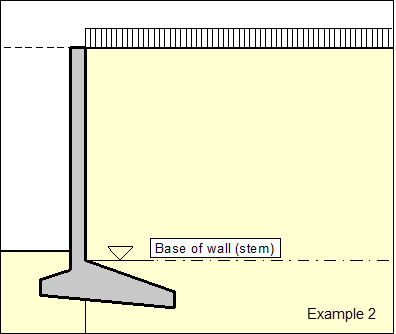

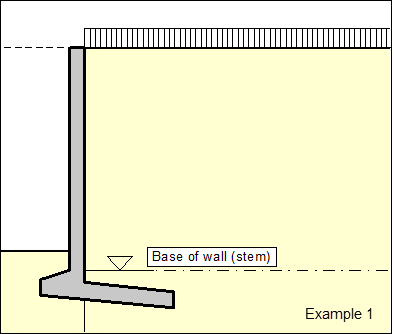

The program first analyses the loads on the wall above the footing. The base of the wall (stem) is marked by a dashed line. This is shown on two examples below:

Earth pressure is calculated to the stem as shown in the figures. The result is the load on the wall above the footing zone. The wall is then designed to EC 2 (reinforced concrete design) using this result.
