GGU-DOLPHIN: "Section visualisation" menu item

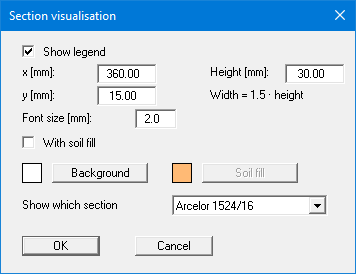

A legend containing a small sketch of the pile section employed is displayed on the screen. Using this menu item you can alter the type of presentation or turn off the legend completely.

You can define and edit the position of the legend using the values "x" and "y". The size of the legend is controlled by the height-width ratio. The size of the legend is controlled using a height to width ratio based on the height you have entered. A background colour can be defined.

The fastest way to modify the position of the legend is to press the [F11] function key and then to pull the legend to the new position while holding the left mouse button.

If the dolphin tube has been backfilled, you can display this by activating the "With soil fill" check box and specifying the required colour using the "Soil fill" check box in the section drawing.

Because only one section can be displayed at a time, the dialog box also displays the query below asking which of the sections used should be displayed when analysing using different sections.
