GGU-GEO-GRAPH: "General legend" menu item

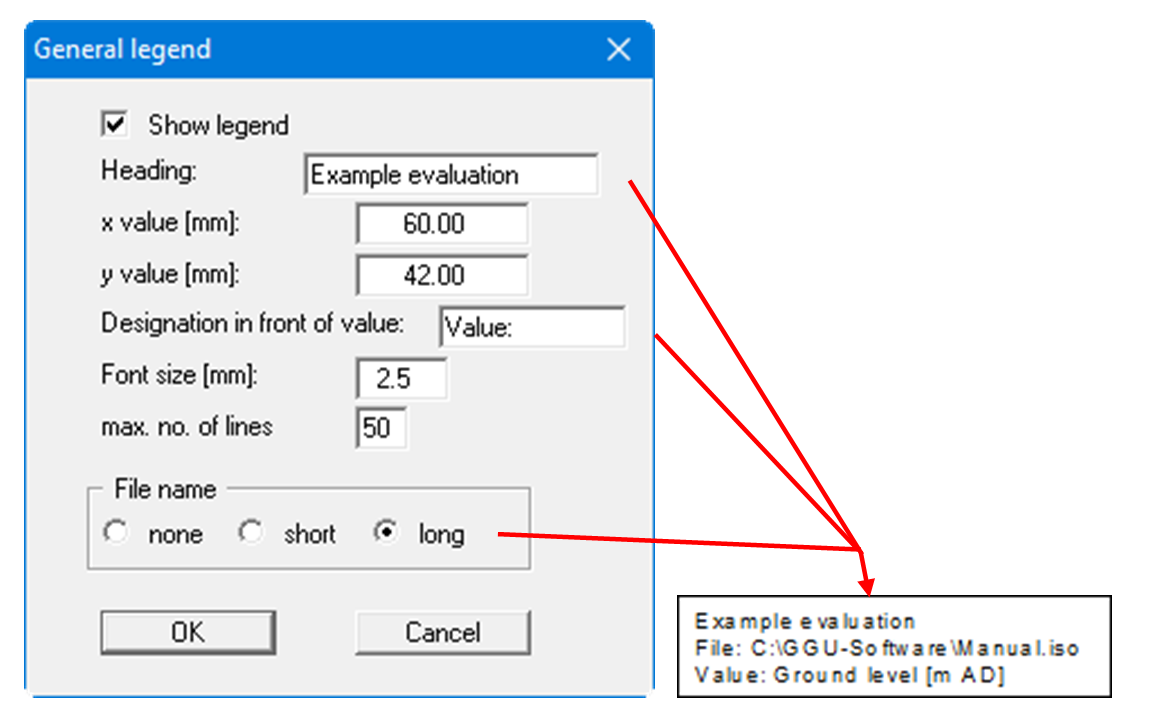

A general legend can be displayed by activating this menu item. The legend will be represented according to the information entered in the dialog box.

If the evaluations are performed via the "Graphics" or "Chart evaluation" menus, where a header is entered in the corresponding dialog boxes (e.g. in the menu item "Graphics/Contours (normal)", "Gradients" button), the 'Heading' box must be left empty. Otherwise the heading appears double.

You can define and edit the position of the legend using the values "x" and "y". You control the size of the legend using "Font size" and "max. no. of lines"; where necessary, several columns are used.

The file name can be excluded ("none" switch) or, by activating the appropriate switch, displayed as "short" or "long" and automatically with or without the file path.
