GGU-STRATIG: Edit SEP 2 abbreviations

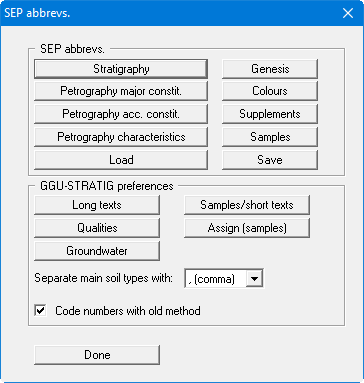

The menu item "Abbreviations (SEP)" opens a dialog box with the "SEP abbrevs." group box for editing abbreviations. The presentation of the texts interpreted using the SEP 2 abbreviations can be modified in the "GGU-STRATIG preferences" group box (see Section below).

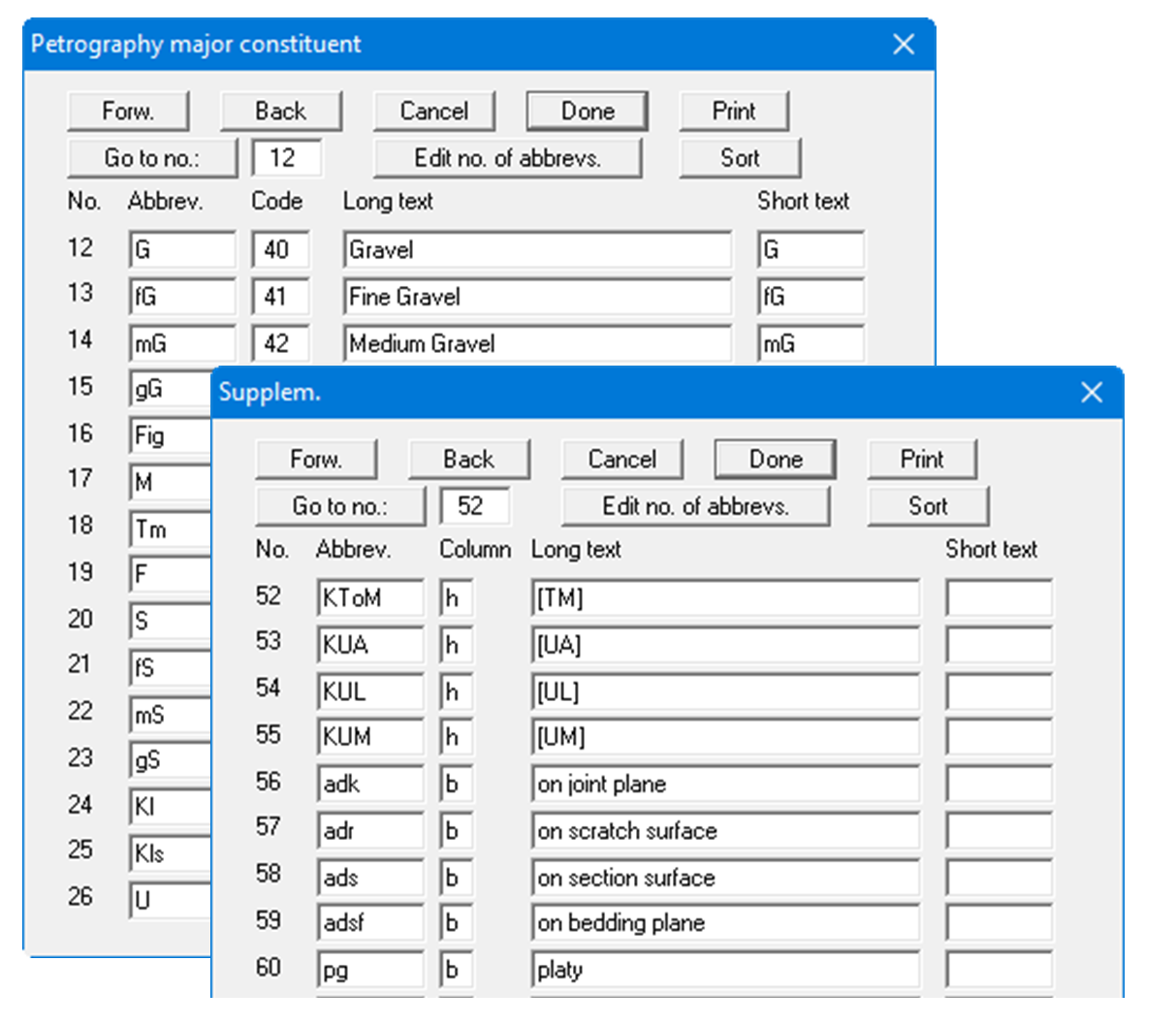

Click the individual field buttons to view the respective SEP 2 abbreviations and associated long texts, as shown in some of the displayed dialog boxes. For example, in the "Petrography major constit." field a column with codes controlling visualisation of the DIN 4023 soil signatures and colours in GGU-STRATIG can be seen. The column allocations for the DIN 4022 form (visualiation of bore log data with the GGU-BORELOG program) can be viewed in the "Supplements" field

If the SEP 2 file has been modified, it can be saved under a different name by pressing "Save". This file is then available for subsequent sessions under the "Load" entry. If "SEPKURZ-e.TXT" is used as the file name and the file is saved in the program folder, the file be automatically loaded the next time the program is started.

When making modifications please note that the same abbreviations file must be used in both programs if the data are transferred to GGU-BORELOG.
