GGU-STRATIG: Enter base data of an inclinometer diagram

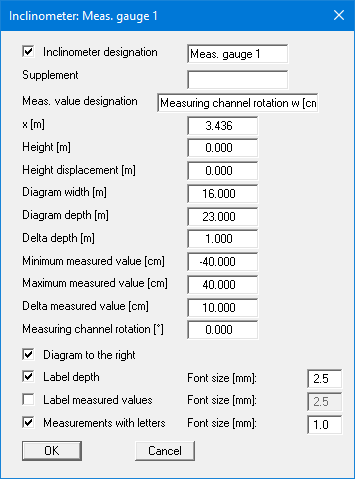

After clicking on the "Base data" button the following dialog box of the selected inclinometer measurement opens:

You can provide the diagram with a "Designation", which can be supplemented by an entry in the "Supplement" field. Neither is shown on the output sheet if you deactivate the "Inclinometer designation" check box. However, the designation is always used to label the buttons in the above dialog box.

You define the position of the diagram on the page using "x", "Height" and "Height displacement". The remaining input defines the diagram's size and subdivisions.

If the "Diagram to the right" check box is activated, the values will be entered into the diagram increasing to the right. Activate the depth labelling, which is displayed at the left or right of the diagram depending on the selected diagram orientation, using the "Label depth" check box.

If the "Label measured values" check box is activated, the respective measured values are displayed at the data points. Alternatively, you can also activate labelling using the letters that you can edit in the previous dialog box using the "Letters" button. The font sizes for the individual labels can be defined separately.
