GGU-UNDERPIN: "Verifications/Partial factors" menu item

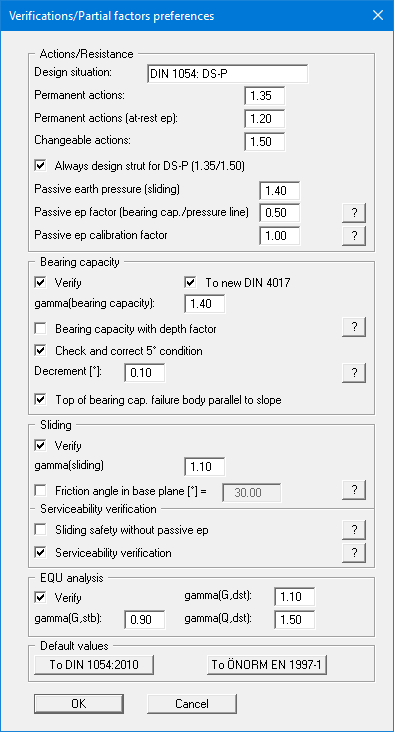

If you are analysing with the partial safety factor concept, you will see a dialog box for defining the partial factors.

The "EQU analysis" group box (limit state of loss of static equilibrium) is only available in EC 7.

In the "Default values" group box the partial factors for the various load cases and subsoil conditions given in the DIN 1054:2010 and in the EC 7 can be selected by means of the dialog box reached by clicking the "To DIN 1054:2010" button. The load case designations were altered for the EC 7 partial safety factor concept:

• Load Case 1 is now DS-P: Persistent Design Situation

• Load Case 2 is now DS-T: Transient Design Situation

• Load Case 3 is now DS-A: Accidental Design Situation

In addition, there is a seismic design situation (DS-E). In the DS-E design situation all partial factors = '1,0'. It is also possible to select the partial safety factors compliant with Austrian standards using the "To ÖNORM EN 1997-1" button.
