Mini-CAD: Enter table values

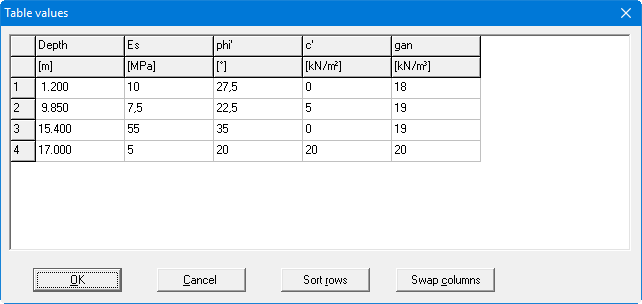

After clicking the "Edit values" button the follow dialog box opens for entering or editing the data to be displayed in the table.
The strata depths of the corresponding section must be entered in the "Depth" column for a strata-oriented table display. If the number of rows is subsequently increased a new row is inserted here. The program assigns the new row number as the depth and the new row is inserted into the corresponding depth section. In the example above a new 5th row would be inserted between rows 1 and 2. Once the data has been edited the rows can be put in the correct sequence using the "Sort" button, although this is also done automatic when the box is closed using "OK".
If the sequence of columns needs to be altered, click the "Swap columns" button and enter the required columns in the opened dialog box. The headings can be left as they are and thus any input made in the incorrect column be corrected.
