GGU-CAD: Text

Go to the menu item "Draw/Text" or press the [F9] function key. Using the left mouse button click at the position on the screen that the text is required:

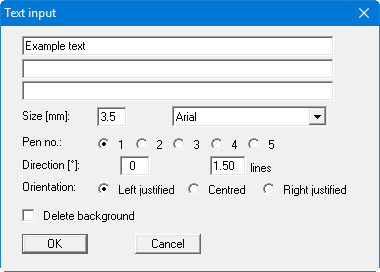

Enter the required text, in three lines if necessary; they are arranged below each other depending on the specified line spacing. Font size, orientation and pen number, with which the text shall be drawn, can be specified. The defaults for the above dialog box can be specified in the menu item "Preferences/Default text/pen".

In addition, the font can be selected. If you require additional fonts, go to the menu item "Fonts/Edit". The default font is also specified here.

The background can be deleted to ensure that the text is easily visible, for example in front of coloured areas. If this check box is activated the text is displayed on a white rectangle.
