GGU-CONSOLIDATE: "System presentation" menu item

The current system is displayed in the graphics when you activate the "Show system" check box. The format and appearance of the graphics can be altered using this menu item.

You can define and edit the position of the legend using the values "x" and "y". The size of the legend is controlled by the values for "Width" and "Height". In some legends, you can also adjust the font size of the label and/or specify a background colour.

The fastest way to modify the position or size of the legend is to press the [F11] function key and then to either pull the legend to the new position or to move the sides of the legend to their new size with the left mouse button pressed.

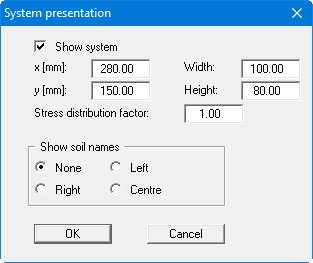

If you have selected a numerical method for the type of consolidation, you can label the system diagram with the soil names at the desired position (see dialog box above).
