GGU-UNDERPIN: Step 2: Define the excavation

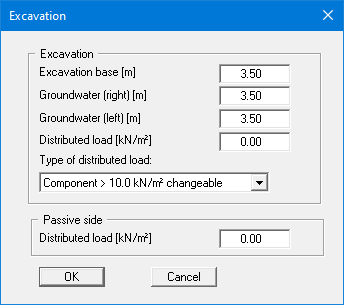

Go to "Excavation" in the "Editor 1" menu. The following dialog box will appear. Enter the values shown below:
The live load of 5 kN/m² for the example is entered later in "Editor 1/Berms (active side)".
Go to "Excavation" in the "Editor 1" menu. The following dialog box will appear. Enter the values shown below:
The live load of 5 kN/m² for the example is entered later in "Editor 1/Berms (active side)".
