GGU-2D-SSFLOW: Step 12: Evaluate confined areas (Example 1)

Go to the menu item "Special/Confined areas" and confirm the preferences with "OK".

It will become clear that an area of about 40 m around the well is no longer confined.

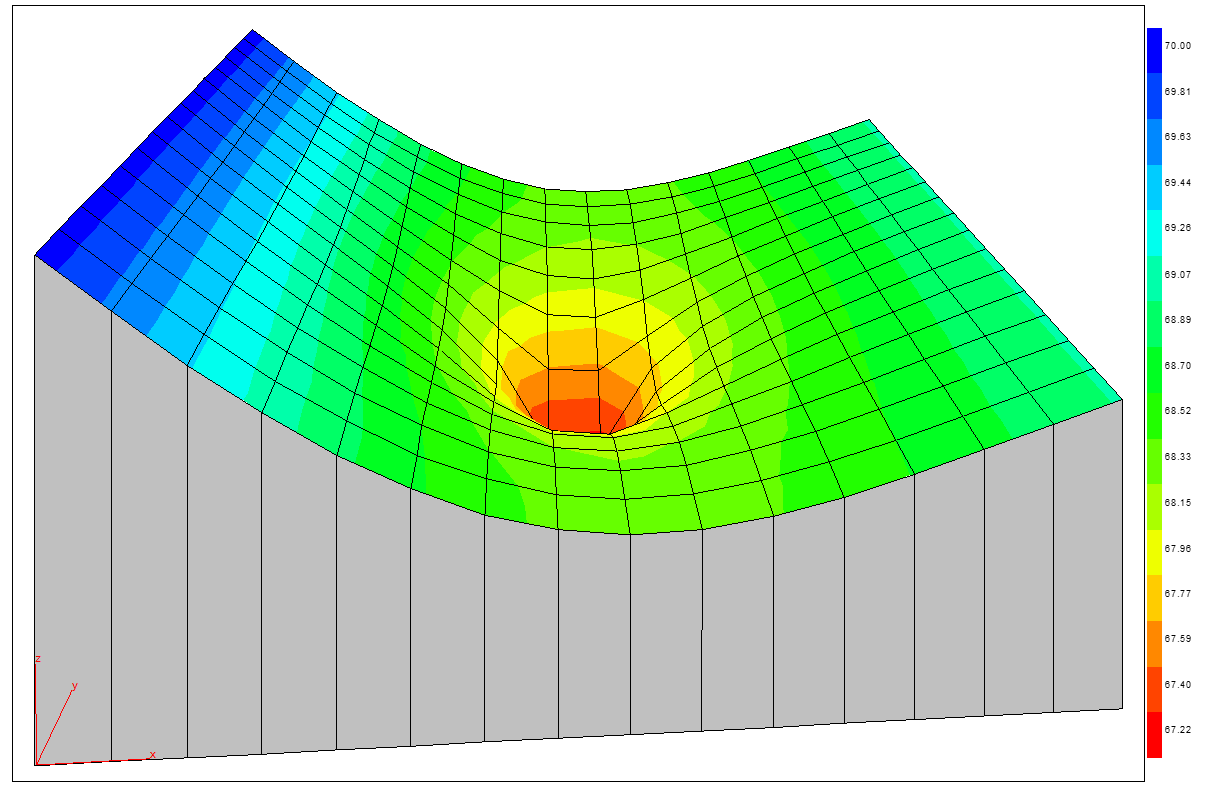

To check this, you can load the supplied file "MANUAL0.FEN", which contains the final system. as 3D array graphics (menu item "Evaluation /3D array".
