GGU-AXPILE: "Resistance-settlement line" menu item

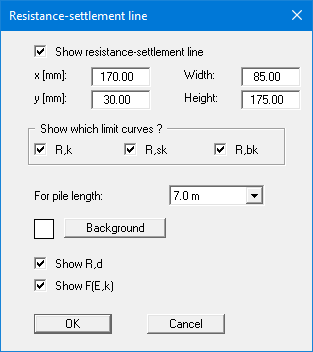

If you have clicked the "Show resistance-settlement line" check box, a resistance-settlement line is graphically represented on the output sheet.

You can define and edit the position of the legend using the values "x" and "y". The size of the legend is controlled by the values for "Width" and "Height". In some legends, you can also adjust the font size of the label and/or specify a background colour.

The fastest way to modify the position or size of the legend is to press the [F11] function key and then to either pull the legend to the new position or to move the sides of the legend to their new size with the left mouse button pressed.

Resistance-settlement curves can be displayed for the skin friction, the base resistance and for the sum of these. Resistance-settlement curves are represented in the graphics for one pile diameter or one pile length only. The pile diameter or the pile length to be adopted in the presentation is selected from the drop-down combo box at the bottom of the dialog box.

Any colour can be used for the diagram background. Visualisation of R,d and R(E,k) can also be activated.
