GGU-FOOTING: "Pad footing" menu item

This menu item only appears in the pad footing analysis mode ("Rectangular footing"or

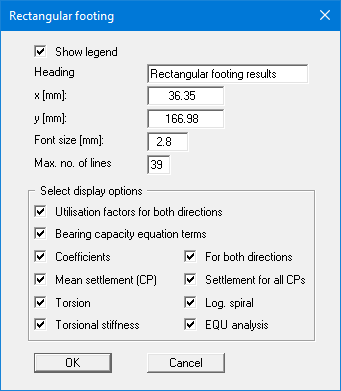

"Circular/annular footing"). An analysis results legend is shown on the screen when the "Show legend" check box is activated. The format and appearance of the legend can be altered using this menu item.

You can define and edit the position of the legend using the values "x" and "y". You can control the size of the legend via the "Font size" and "Max. no. of lines"; if necessary, the legend is displayed in several columns. You can also define a background colour in some legends.

The fastest way to modify the position or size of the legend is to press the [F11] function key and then to either pull the legend to the new position or to move the sides of the legend to their new size with the left mouse button pressed.

The check boxes at the bottom of the box allow you to select a number of parameters to be entered in the graphics.
