GGU-SETTLE: Check input data (Ex. 1)

The input for the foundations can be checked using the menu item "Foundations/Check foundations". Alternatively, you can press function key [F8]. The foundations are visualised with corner stresses. In the dialog box, specify the additional input data to be visualised:

A contour diagram of the layer base can be generated to check the layer depths that have been entered. To do this, select the menu item "Soils/Layer base contours".

Enter the number of the required layer. Deactivate the "Coloured" check box if a normal line diagram is required for contour visualisation. Confirm with "OK".

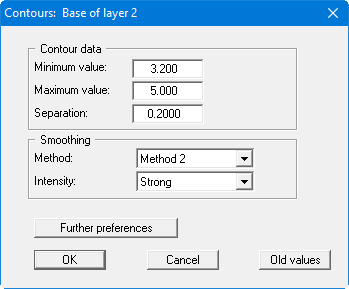

In the upper part of the dialog box you can influence the number of contour lines with the input after "Separation". If desired, change to a different smoothing out procedure. After exiting the box using "OK" the lines of equal layer base elevation are visualised on the screen.
