GGU-SLAB: "Reinforcement" menu item

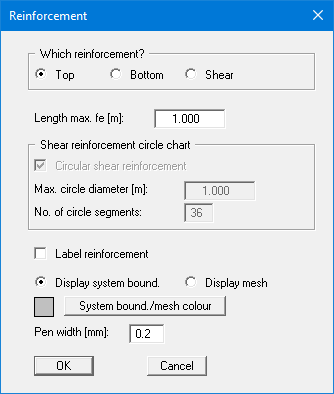

The reinforcement is displayed as lines according to direction and size. Shear reinforcement can also be displayed as a circle diagram; otherwise, the numerical values are displayed.

The line colour and line thickness, and the labelling colour can be specified in the menu item "Graphics preferences/Pen colour and width", "Reinforcement" check box.
