GGU-SLAB: "Support" menu item

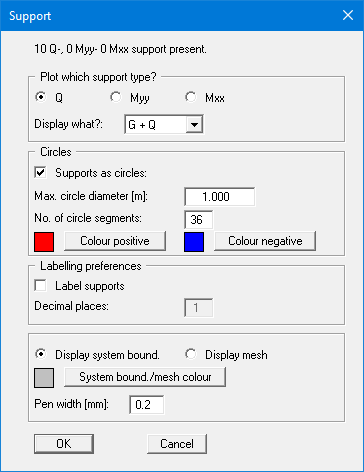

You can generate a circle chart of the support forces using this menu item. The current supports are shown at the top of the dialog box.

Select the support to be displayed in the upper group box of the dialog box.

• Q = support resulting from displacement boundary condition w

• Mxx = support resulting from displacement boundary condition phi(y)

• Myy = support resulting from displacement boundary condition phi(x)

All other input is identical to the input in menu item "Evaluation/Circles".
