GGU-STRATIG: "GW symbols, samples and 'Free text'" legend

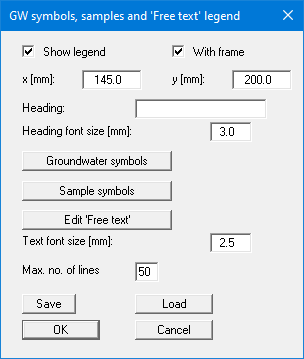

The groundwater and sample symbols can be explained, or user-defined texts displayed as descriptions using this menu item. Activate the "Show legend" check box.

An optional frame can be drawn around the outside of this legend. A heading can be given and the font size altered. You can define and edit the position of the legend using the values "x" and "y". You control the size of the legend using "Text font size" and "Max. no. of lines"; where necessary, several columns are used.

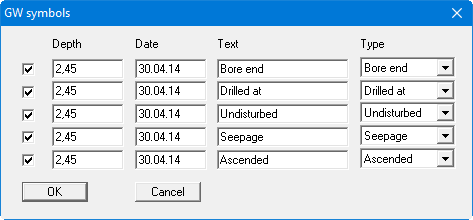

If you would like to have the groundwater symbols explained, click on the "Groundwater symbols" button. You will then see the following dialog box:

You can activate one or more rows. The various groundwater symbols can be selected at the end of each row.

To use explanations of the sample symbols click the 'Sample symbols' button and select the required explanation from the dialog box (special sample, core sample, disturbed sample).

After clicking "Edit 'Free text'" the user-defined texts can be entered in an editor window. The input can be saved in a ".txt" file via the editor window's "File" menu, or an existing text file can be opened. The text entered is adopted when the window is closed again.

To ensure that your preferences are always loaded when the program is started, save them in the "GGU-STRATIG.txtl_ggu" file at program level. You can also save different settings in several legend files and load them as required.
