Mini-CAD: Editor box for a line

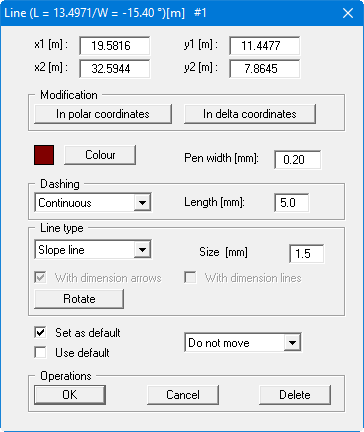

The example below shows the editor box for a line, in which you can edit the coordinates, colour, line strength, dashing and line type (e.g. dimension line, ground line, slope line, etc.). For lines, the length is shown in the blue title bar at the top of the dialog box, together with the angle of inclination. In addition, the current drawing layer is shown in the title bar by the '#1'. Using the "In polar coordinates" and "In delta coordinates" buttons you can define the coordinates of the line from a given origin.

TIP: If you want to measure a certain length in the drawing, first draw a corresponding line using Mini-CAD. Then double-click on this line and read the values from the dialog box. You can then delete the line (e.g. by using the [Back] key).
