Mini-CAD: Editor box for a text

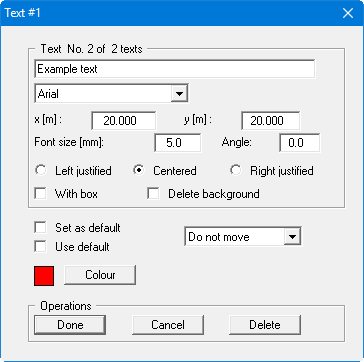

If an existing text is double-clicked the following editor box opens:

If you need to change the font of an existing text the new font can be selected from the upper drop-down combo box. If the required font is not listed, it must first be opened in the Mini-CAD system via the "Font" icon (see Section “Mini-CAD: Defining fonts”).

The colour displayed corresponds to the preferences for the selected pen used to create the text. The colour preferences can be edited via the "Colour" button.
