Mini-CAD: Editor box for a rectangle or a circle

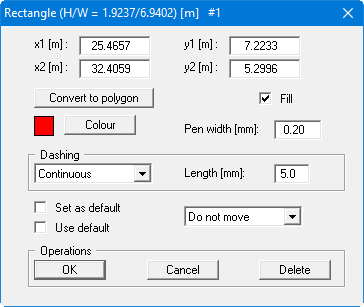

The editor box for a rectangle is shown below. The circle editor box is identical, the only difference being that instead of the x/y coordinates of the opposing corners of the rectangle you will see the x/y coordinates of the circle centre and the radius.

The pen colour, width and dashing correspond to the preferences for the pen selected to draw the rectangle or circle. If the "Fill" check box is activated, the rectangle or the circle is drawn with a colour fill, which can be defined via the "Colour" button. The outline of the rectangle or circle is always drawn in black if the colour fill is activated. Only the pen width and the dashing can then be altered.
