GGU-ELASTIC: "Support" menu item

You can generate a circle chart of the bearing forces using this menu item.

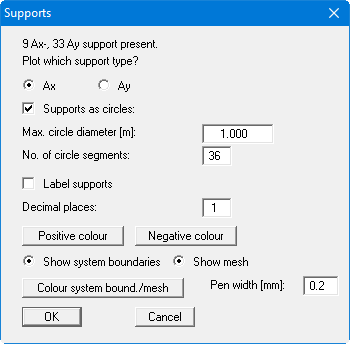

In the upper part of the dialog box you set the type of support to be determined.

  • Ax = support due to displacement boundary condition wx

  • Ay = support due to displacement boundary condition wy

All further input is identical to input for the menu item "Circles".
