GGU-STABILITY: "General legend" menu item

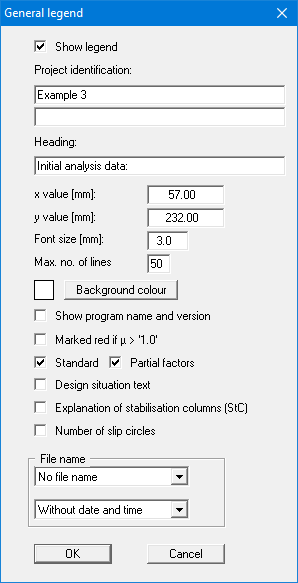

A legend with general information about the system is shown, if the button "Show legend" is activated. In particular, important information on the input values for consolidation layers is given.

Any description previously entered using the menu item "Editor 1/Project identification" is used in the above dialog box. In addition to the project identification it is also possible to enter a heading for the general legend here. Activate the corresponding check boxes to also display the adopted standards and the partial factors. The further explanations are adapted to your settings in each case, for example, explanation StS for stabilisation. The number of slip circles can be entered for the slip circle method.

You can define and edit the position of the legend using the values "x value" and "y value". You control the size of the legend using "Font size" and "Max. no. of lines"; where necessary, several columns are used. The fastest way to modify the position of the legend is to press the [F11] function key and then to pull the legend to the new position with the left mouse button pressed.

In the general legend you can, if wished, display information on the program (name and version) and on the current file. The current file name can be shown in the legend, either with or without the path. Date and/or time can be displayed, too.
