GGU-STABILITY: "Generate" menu item

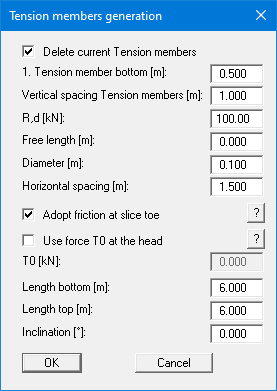

With this menu item you can define all the nails in a wall with very little input. If the wall consists of tension members, the following dialog box will appear:

After leaving the dialog box the tension members will be displayed. If the position and length of the tension members still do not meet your wishes, select this menu item once again, activate the "Current tension members to be deleted" check box, and correct your input.

If the nail wall consists of geosynthetics,or steel strips, you will see an adapted generation dialog box.

Directly after geosynthetics, steel strips or tension members generation a dialog box opens in which you can initiate regeneration of slip surfaces (see "Nail wall/Generate slip surfaces" menu item).
