GGU-STABILITY: "Graphics" menu item

The appearance of the earth pressure wedge and the gravity body can be edited. This menu item cannot be selected if more than 1 nailed slope face exists in the system.

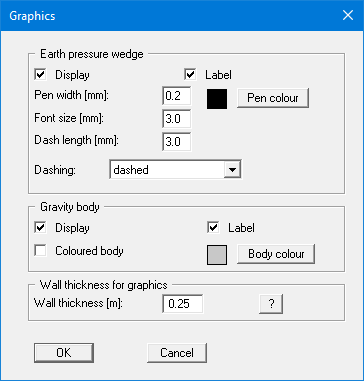

The dialog box inputs are self-explanatory and without meaning for the calculation results. Try out the possibilities which the dialog box presents You can use the wall thickness to make the slope face more accentuated for geosynthetics or steel strips. When using tension members, the wall thickness corresponds to the value you entered as the thickness of the concrete shell in the menu item "Nail wall/Preferences". Try out the possibilities of the dialog box.
