GGU-3D-SSFLOW: Step 10: Assign soil properties

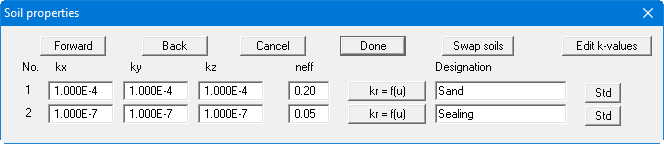

Go to "System/Soil properties". Enter the values of the following dialog box.

Because you have assigned two different soil numbers, the dialog box also now has two input rows for two soils. Enter the values of the dialog box above. If you do not place excessive demands on the location of the phreatic line you can do away with editing using the "kr = f(u)", otherwise, read the "Theoretical principles". The effective pore space n_eff only plays a role in flow line representation and the representation of velocities. This value has no influence on potentials and discharges.
