GGU-GABION: Body

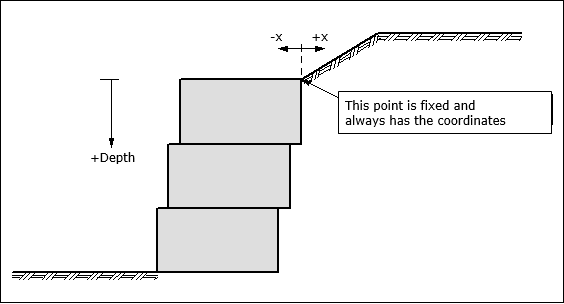

The body is defined in horizontal sections of three values each:

  • depth of cross-section below top of the wall;

  • corresponding left and right wall boundary.


In order to define this body, you must enter the depths and the two corresponding x-values in six horizontal steps (also see menu item “Editor 1/Body (geometry)”). All earth pressures (including from area loads) are calculated on the vertical line at x = 0.
