GGU-3D-SSFLOW: Schritt 13: Auswerten der Potentiale im Schnitt

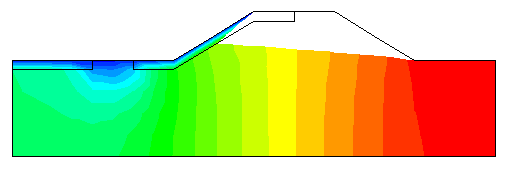

Wählen Sie den Menüeintrag "Auswerten / Werte im Schnitt" oder das Symbol in der Symbolleiste 3D, um einen Schnitt zu definieren. Um den Einfluss der Fehlstelle sichtbar zu machen, führen Sie den Schnitt am unteren Systemrand entlang. Drücken Sie die [Return]-Taste und wählen Sie den Menüeintrag "Auswerten / farbig". Sie erhalten die Potentiallinien im gewählten Schnitt mit der gut sichtbaren Fehlstelle (siehe auch Datei "Bsp. Step 09 Isolinien im Schnitt.f3d"):
